New Module

Now that your Cyclops instance is deployed locally, you can deploy an application into the cluster through Cyclops.

Modules

Add a New Module​

When you start up Cyclops, the first screen shown to you is the Modules screen. This screen should be empty at the moment. What we want to do next is click on the Add module button in the top right corner.

Define Your Module​

Now, we want to define our new module. Every Cyclops instance comes with a couple of predefined templates, which we included. From the dropdown under Module template, you can choose which predefined templates you want to use. For the sake of this tutorial, we will use demo-template.

If you want to learn more about templates and how to create your own, check out the Templates section!

Loaded Template

If you play around with different templates, you will find that Cyclops is highly customizable. Depending on the template used, this screen will be different.

Now, all left to do is fill the form with values and click Save!

Here is an example of values you could use:

Module name: demo
name: demo-1
replicas: 3
image: nginx
version: 1.14.2
service: true

Module Overview​

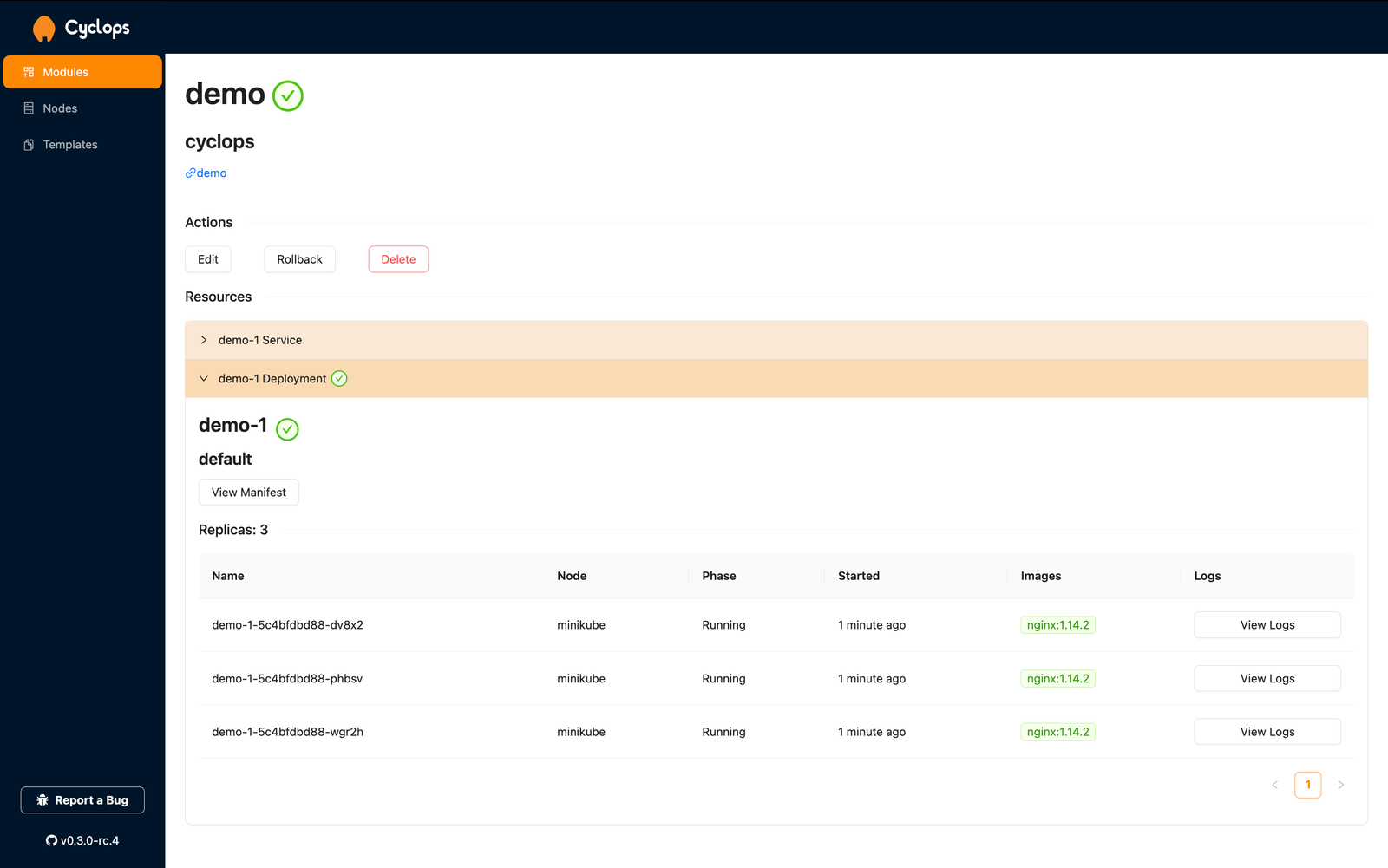

Once you have deployed your application, you will be taken to a new page to find the overview of all the resources your new module uses.

Module Details

If you have tried out Cyclops with the suggested template and values, you can open your deployed application by exposing it to the outside world and visiting it. Expose it with the following command:

kubectl port-forward svc/demo-1 8888:80

If this step was successful, you could try visiting http://localhost:8888, and you should see the Nginx hello message.

Welcome to Nginx

This was just a simple example. There are more templates for you to explore, and you could try creating your own.

Potential Problems​

Naming​

If an error pops up referencing the Kubernetes naming convention, try conforming to the following rules:

  1. contain no more than 63 characters
  2. contain only lowercase alphanumeric characters or '-'
  3. start with an alphanumeric character
  4. end with an alphanumeric character

Error Loading Template​

If you are using your own template, be sure that you connected it correctly.

This usually means that you didn't input the right url + path + version. When connecting the template to Cyclops, you need to copy the URL from the GitHub repository that leads to the template. The URL must lead to a directory that holds a template folder.

In our example, we filled the form with the values below:

repository: https://github.com/cyclops-ui/templates
path: demo
version: main

Try connecting it again in the Templates tab.

warning

Private repositories are not yet supported!

This is currently a high priority on our roadmap, and you should expect support for private repositories sooner rather than later.
